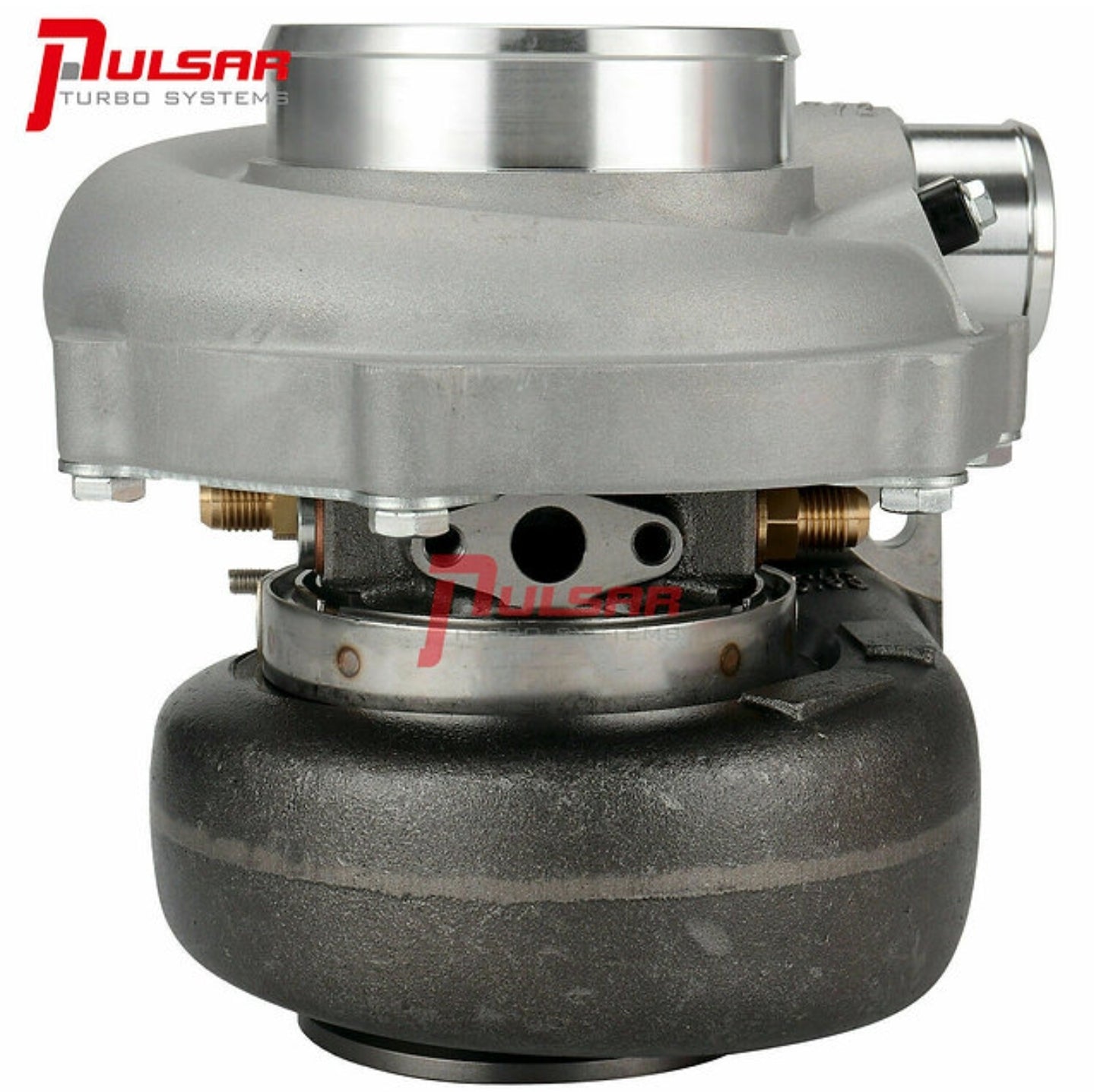

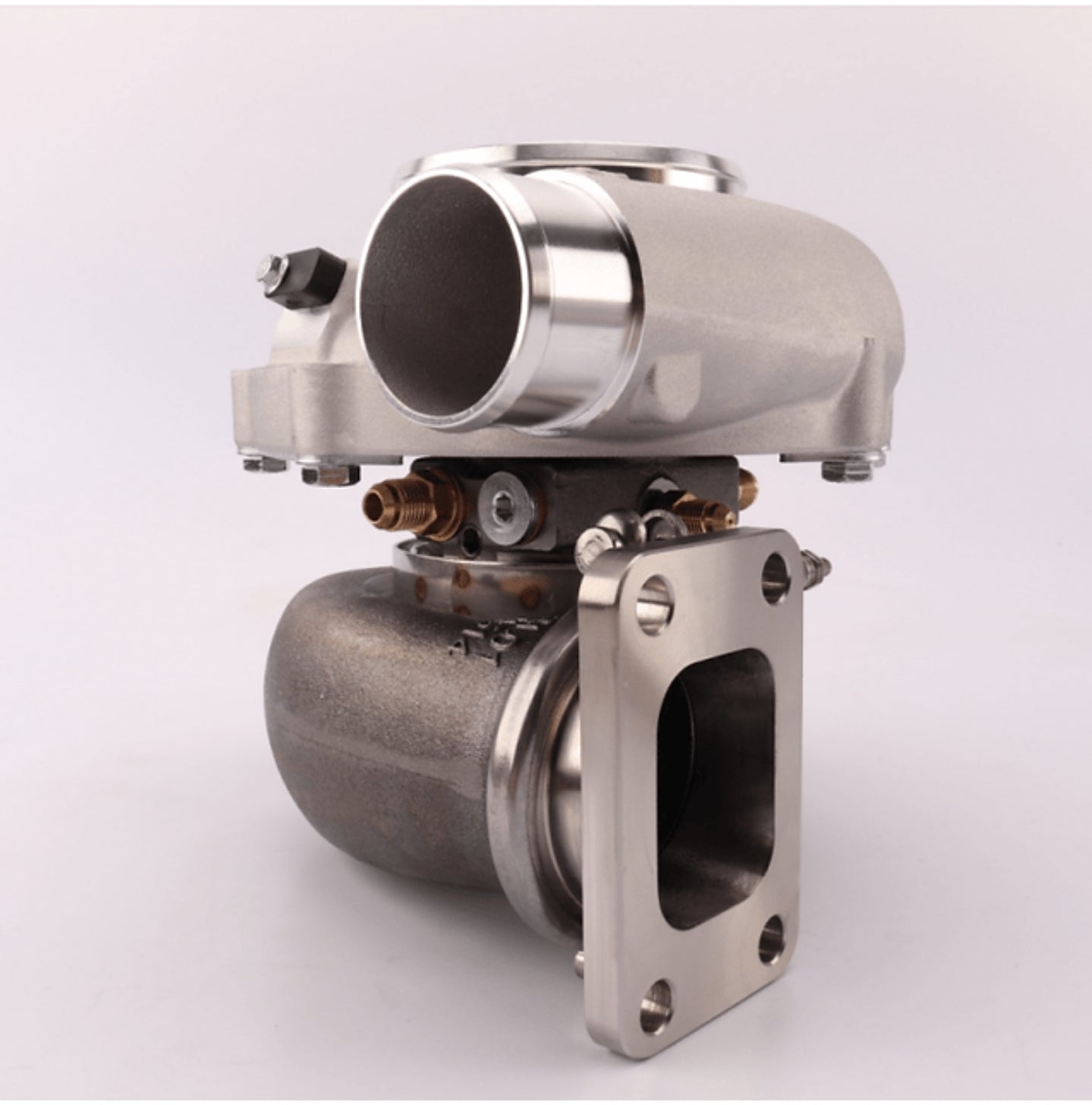

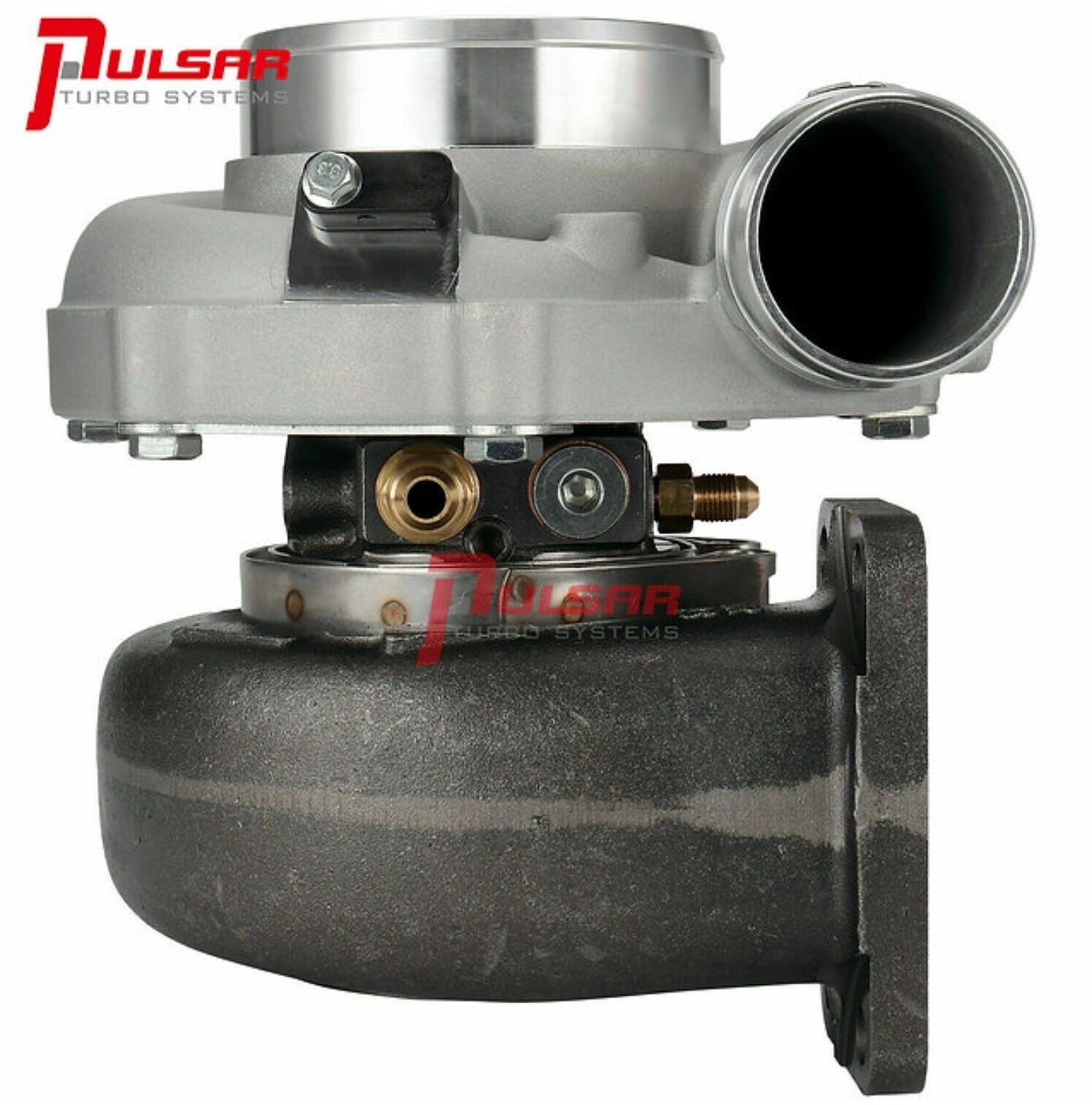

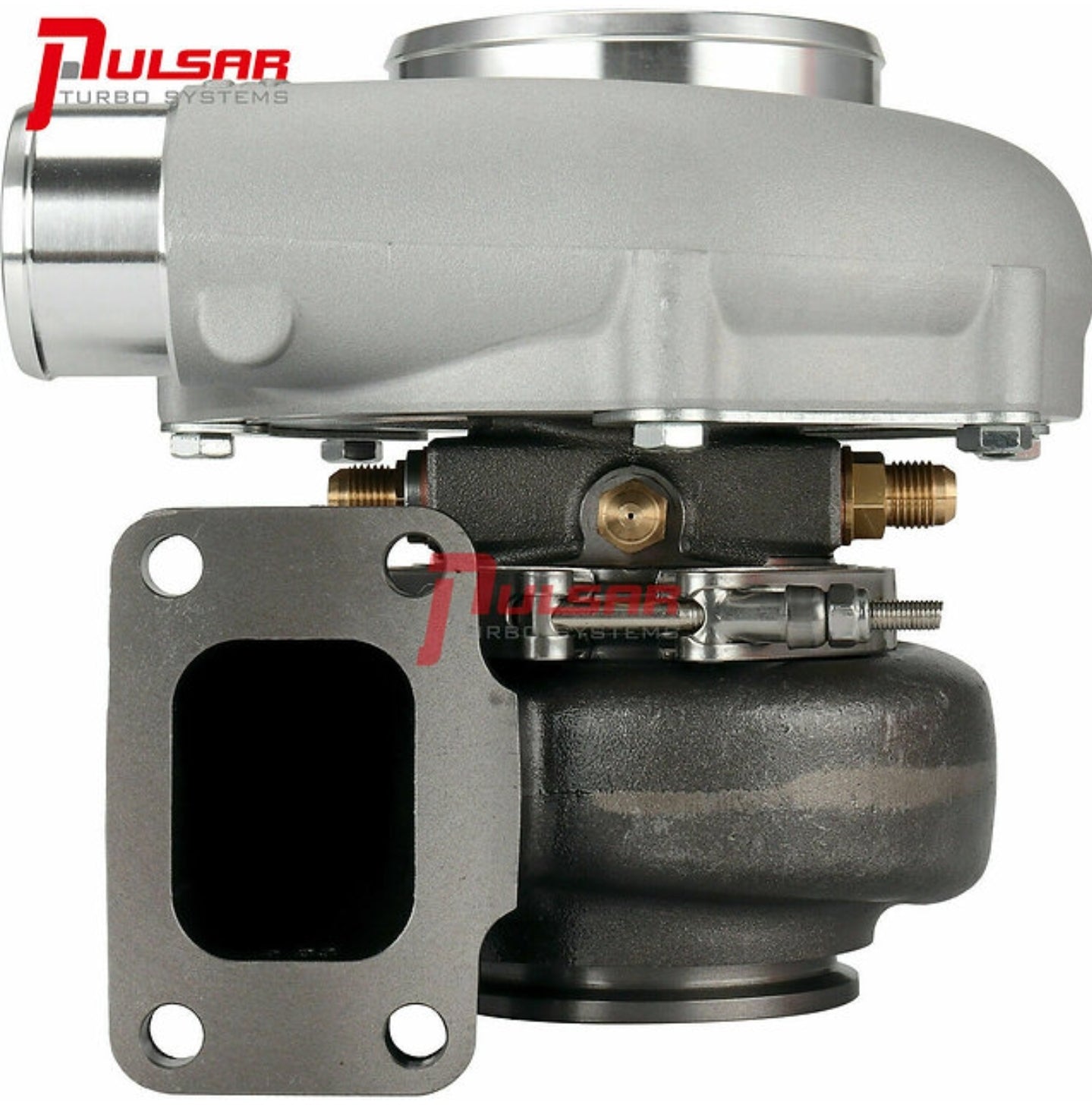

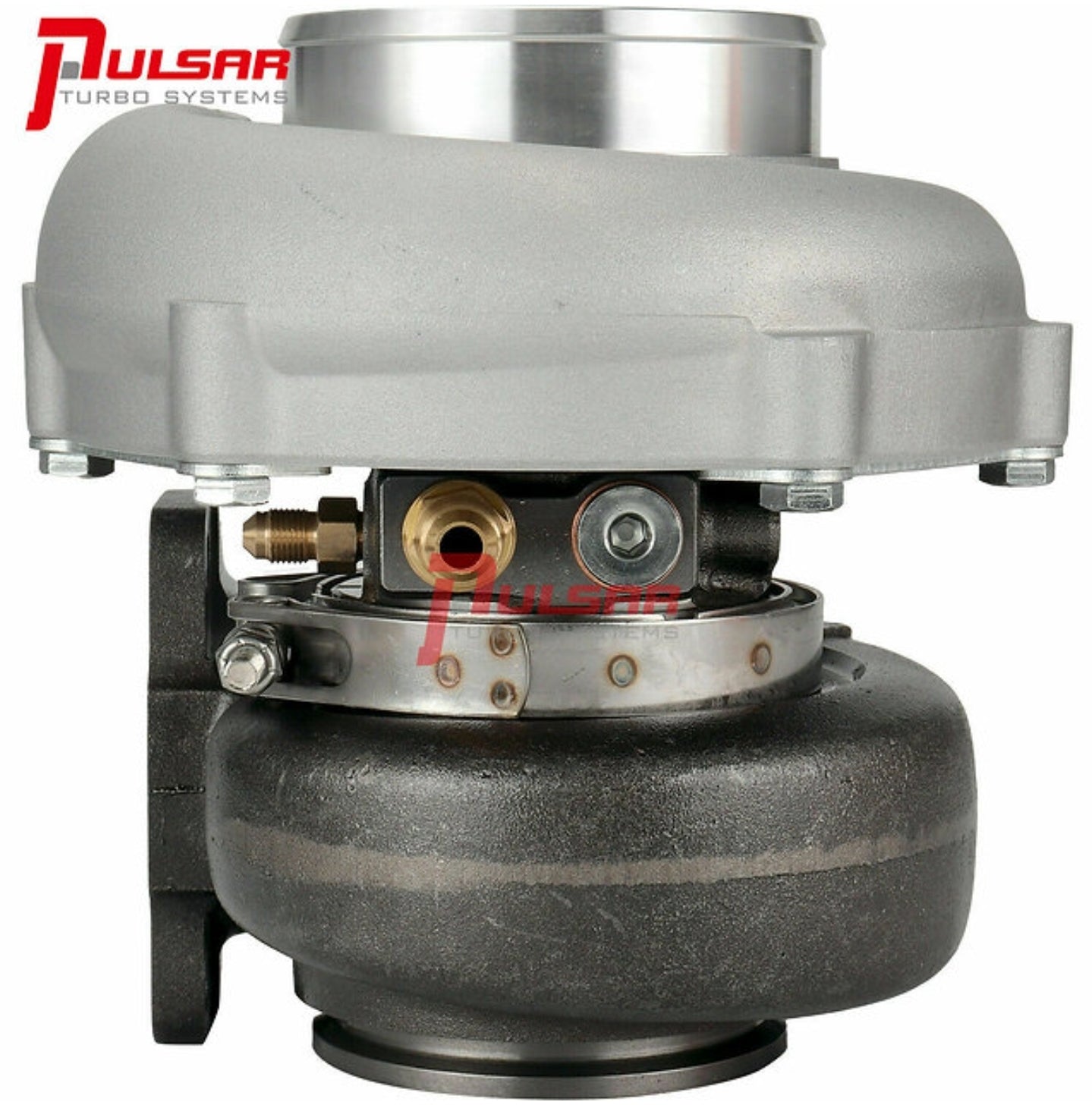

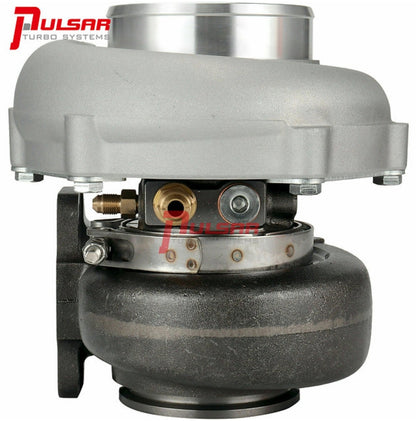

Pulsar PTG30-660

Recommended displacement 2.0 to 3.5 litres with power outputs up to 660hp possible.

Dual Ceramic ball bearing system provides optimal turbo response & better durability by reducing play in the shaft.

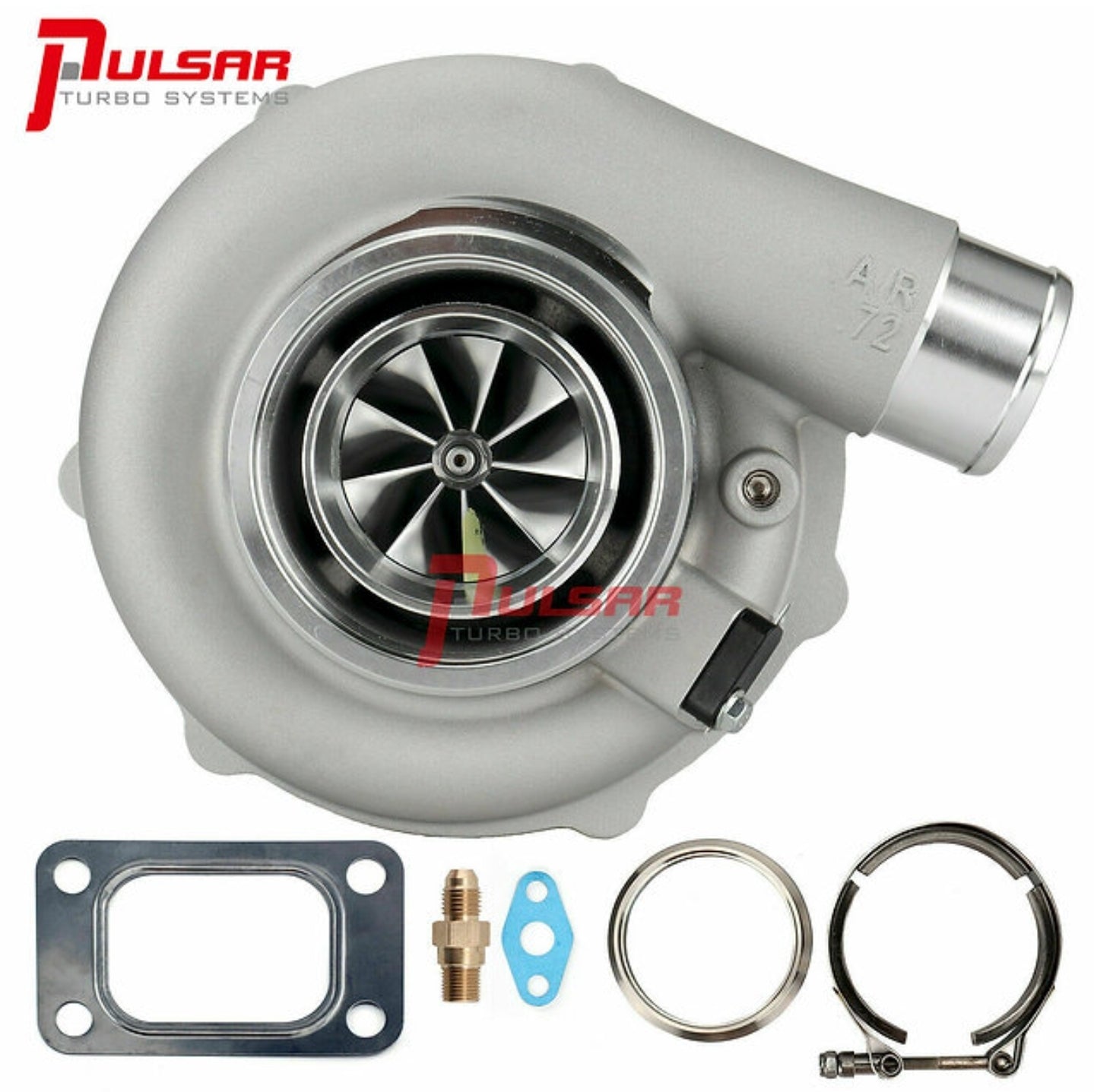

9 Blade G-Aero Billet Compressor Wheel with Extended Tapered Tip Technology

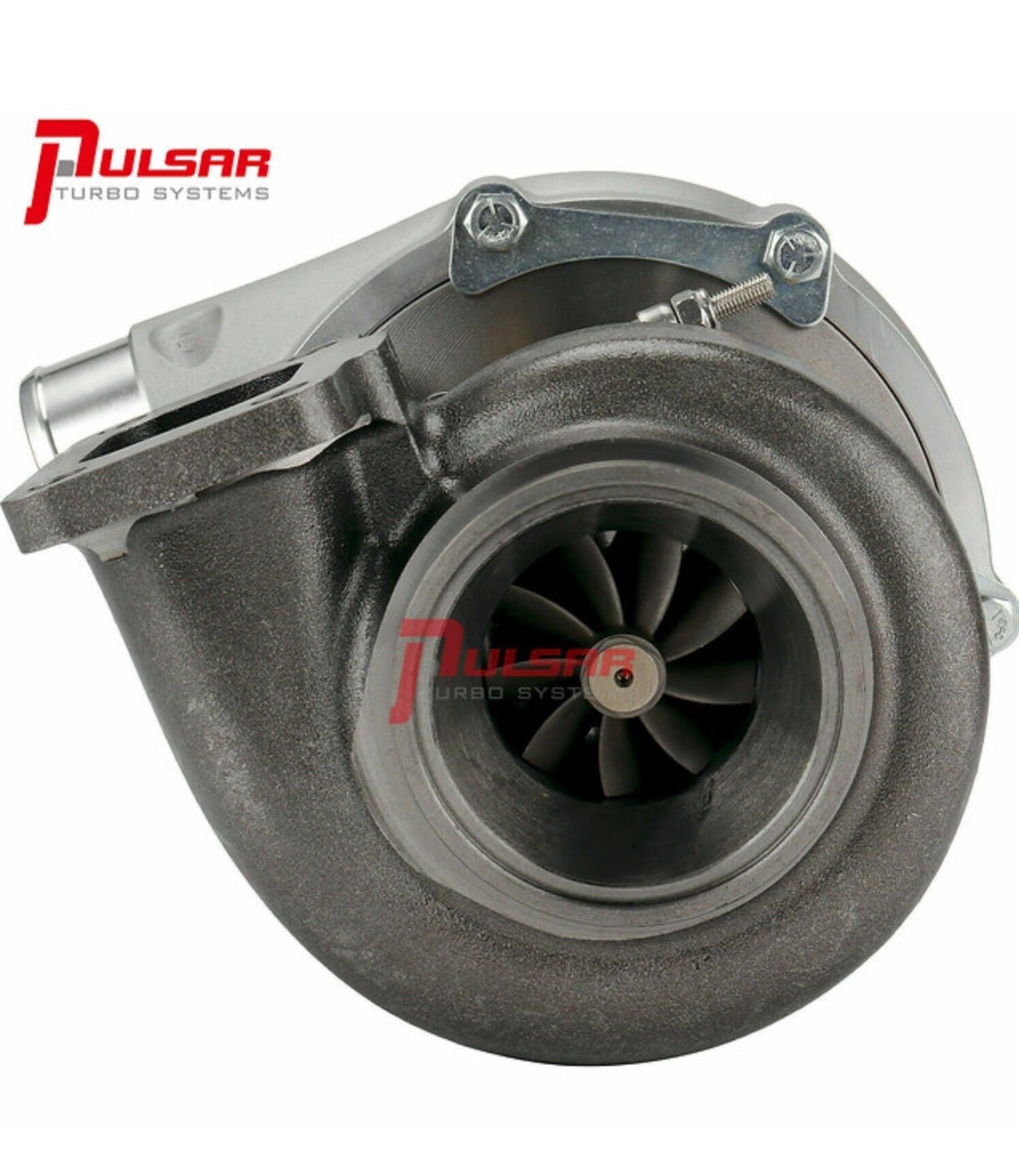

9 Blade G-Aero Inconel 713c Turbine Wheel

Anti-Surge ported-shroud compressor inlet, cover with integrated speed sensor port

SPEC

Compressor Wheel: 54*67mm

Turbine Wheel: 60*55mm

Compressor Inlet: 4″ Hose

Compressor Outlet: 2″ Hose

Turbine Inlet: T3 or T4. 1.01 V band is 2.5" pipework

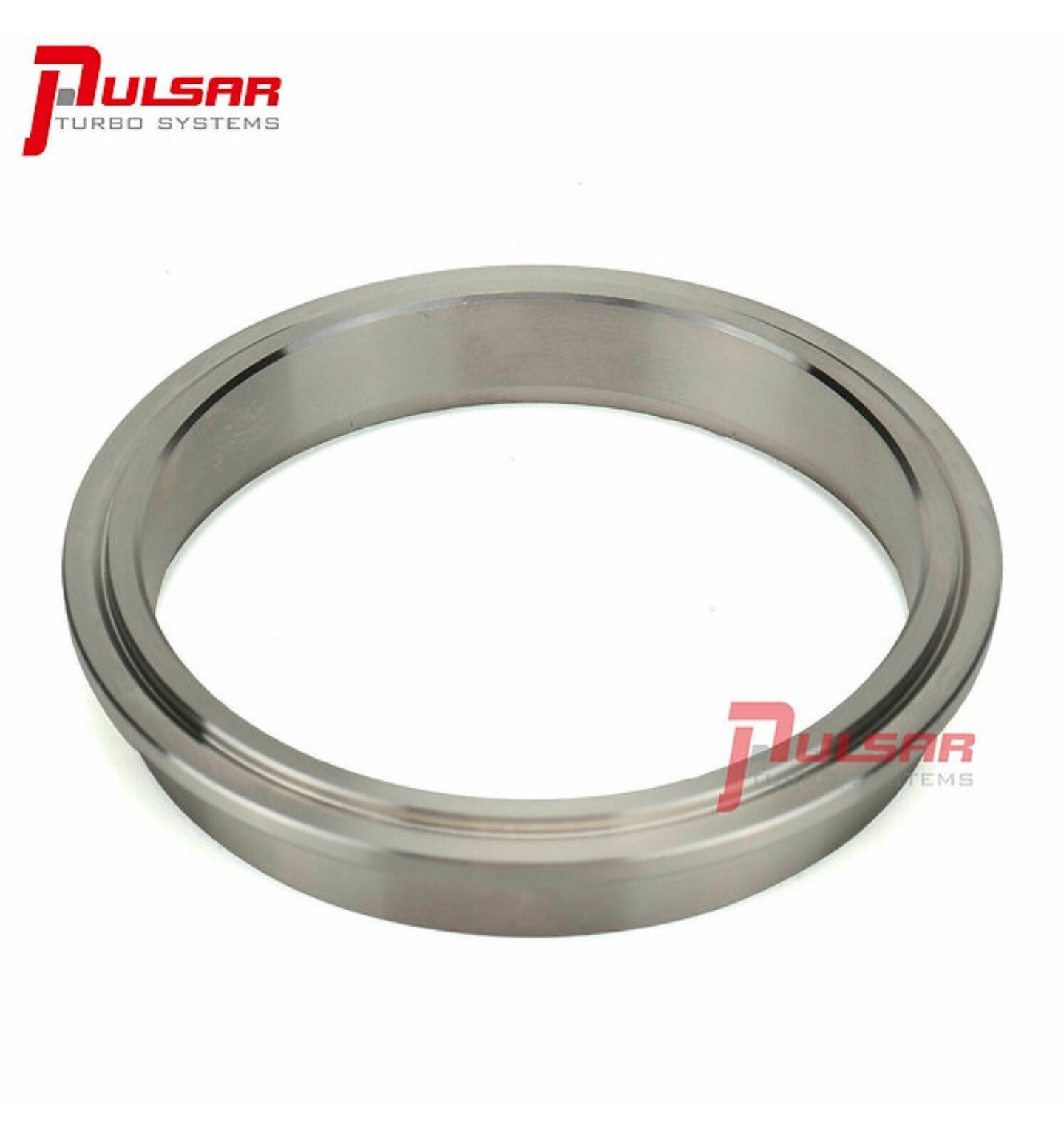

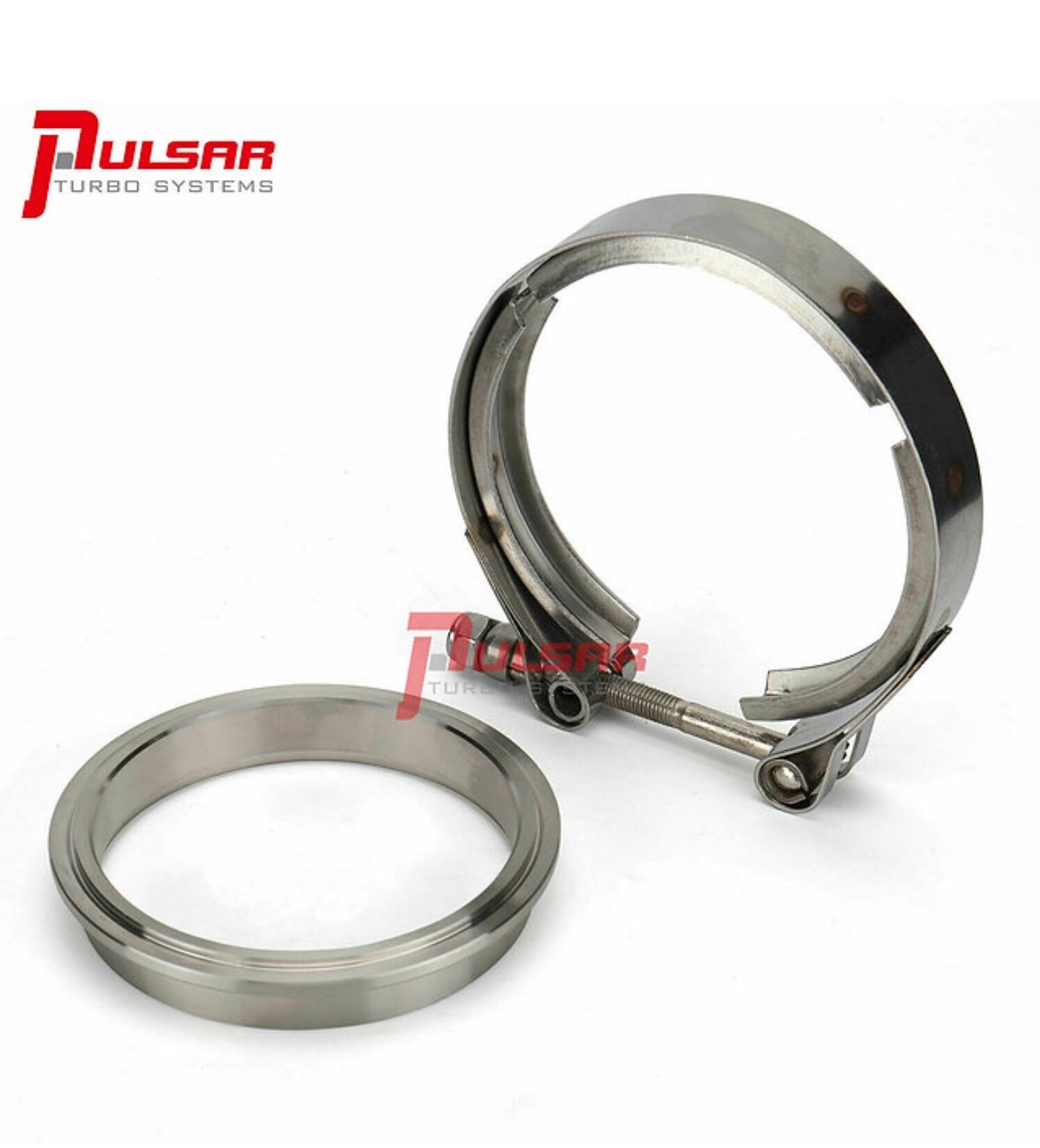

Turbine Outlet: 3″ V-Band

Water Ports: 2-M14 X 1.5

Oil Inlet: 7/16-24 UNF with a -4AN Restrictor pre-installed

Oil Outlet: Std T3 Oil Drain Flange

It's strongly recommended to run water cooling to aid reliability.
